What is a CO2 laser machine? Function, materials and applications

En CO2 laser machine is one of the most widely used laser types for engraving, marking and cutting in various materials. It is often used as a laser engraving machine in sign production, industry, design, prototyping and product customization because it combines high precision with great flexibility. Unlike more niche laser machines, a CO2 laser can process many different materials, making it a good choice for companies that work with varying products and applications.

What is a CO2 laser machine?

A CO2 laser machine is a machine that uses a laser source based on carbon dioxide, or CO2. The laser source generates a concentrated laser beam that is guided through the machine's optics and focused onto the surface of the material. When the beam hits the material, very high heat is created at a small and precise point. This causes the material to either burn away, melt or vaporize.

It is this process that makes it possible to create both detailed laser engravings and precise cutouts. The technology behind how the laser beam is created is advanced, but for the user it is mainly about understanding how materials, settings and focus affect the end result.

How does a CO2 laser machine work?

A CO2 laser machine works by focusing a laser beam onto a material using lenses and mirrors. When the beam hits the material, heat is generated, and depending on the settings, the machine can either engrave on the surface or cut through the material.

Engraving mainly processes the top layer of the material. This can be, for example, text, logos, images, patterns or markings. Cutting uses the laser instead of going through the entire material and creating a cut shape. The difference is not only in what the machine does, but also in how strong, fast and focused the laser works.

The difference between engraving and cutting

In laser engraving, the laser works on the surface of the material. The result varies depending on the material and settings. In laser cutting, higher energy is used to completely separate the material.

This means that the same machine can be used for several different results. For example, a wooden board can be engraved with a logo and cut out in a specific shape. This is why the CO2 laser is often used in productions where you want to combine decoration, marking and design in the same workflow.

Advantages of a CO2 laser machine

What makes a CO2 laser unique is above all the combination of flexibility, precision and wide material support. Unlike, for example, fiber lasers, which are mainly used for metal, CO2 lasers work more as a generalist. They can process many different organic and non-metallic materials, such as wood, acrylic, plastic, leather and laminates, making them an obvious choice for companies that want a versatile laser engraving machine with multiple uses.

The choice of laser machine is often dictated by the material you are working with. If the focus is on wood, acrylic, plastic, leather or similar materials, CO2 lasers are often the most suitable choice, while fiber lasers are usually better suited for metal processing. This makes the CO2 laser particularly suitable for operations where flexibility is more important than extreme specialization.

Another clear advantage is precision. The CO2 laser can create small details, sharp contours and clear markings without coming into physical contact with the material. This reduces the risk of mechanical wear and makes the technology useful for both decorative and functional markings, regardless of whether it concerns customized products, shorter series or varying productions.

Since the same machine can be used for both laser engraving and cutting The CO2 laser also becomes effective in a production flow. A laser engraving machine with CO2 technology can therefore also function as a laser cutter, which makes it possible to combine laser engraving, marking and laser cutting in the same workflow. This provides greater freedom in the design and manufacturing process and makes the machine particularly useful for companies that want to produce many different types of products without having to change machine technology.

Explore laser engraving machines

Laser engraving and laser cutting techniques

When working with laser engraving and laser cutting, the terms raster and vector are often used. These describe how the machine interprets the design file and how the laser should move over the material.

Raster engraving

Raster engraving is an engraving method where the motif is built up from many small dots or lines. The laser works line by line over the surface of the material, much like a printer, and marks the parts of the motif that are to be engraved. By varying how densely and intensely the laser works, you can create different shades, contrasts and details in the engraving.

The method is often used when you want to engrave images, illustrations, logos, larger surfaces or motifs with grayscale. Since raster engraving can create details and shading, the technique is particularly well suited for photographs and more visually complex motifs.

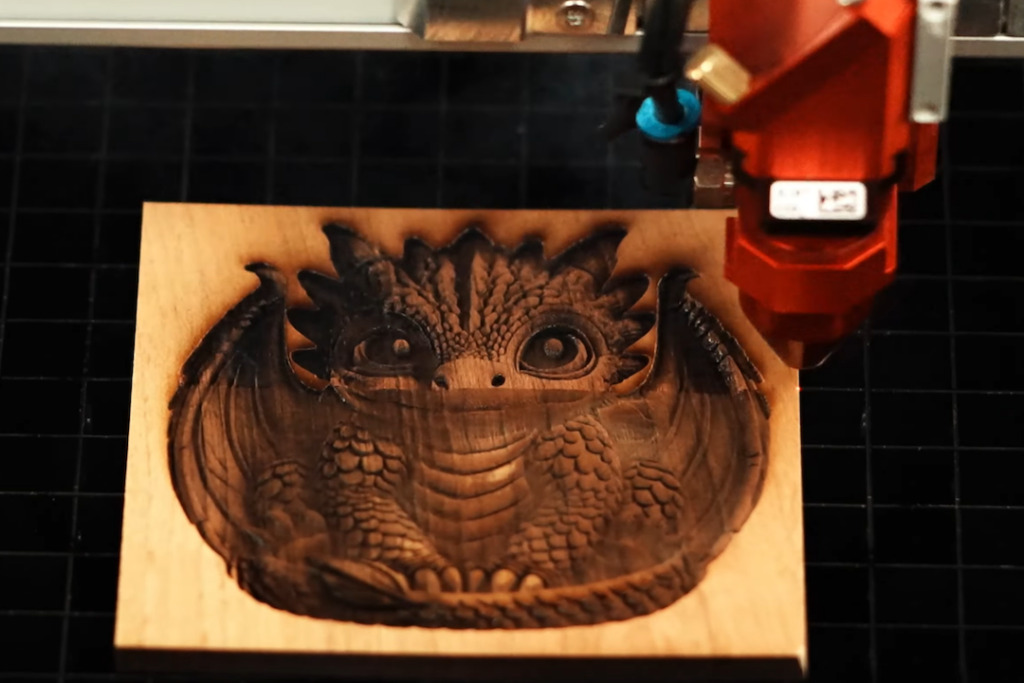

• Relief engraving can be seen as a more advanced form of raster engraving where different levels in the motif create a sense of depth. By working with grayscale, the laser can engrave at different depths in the material and create an expression that almost feels three-dimensional.

• Dithering and grayscale screens Used primarily for photographs and detailed images where you want to create shadows and smooth transitions. The technique varies the dot pattern and density to mimic different shades and depths.

• Photogravure is a type of raster engraving that is specially adapted for photographs and highly detailed motifs. The technique focuses on reproducing faces, shading and small details with high precision.

• Material-adapted grids This means that different screen settings are used depending on the material and desired result. Some screens work better on wood, for example, while others provide better contrast on plastic or laminate.

Vector engraving and vector cutting

Vector is used when the laser follows lines and contours. This is especially common in laser cutting, as the machine then follows a path to cut out a shape. Vector can also be used for thinner line engraving, such as contours, text or decorative details.

In simple terms, raster is often used when surfaces are to be engraved, while vector is used when lines are to be followed or material is to be cut out.

What materials can be processed with a CO2 laser?

One of the biggest advantages of CO2 lasers is that the technology works on a wide variety of materials. It is particularly well suited for organic and non-metallic materials such as wood, MDF, plywood, acrylic, plastic, leather, textiles, paper, cardboard, glass and various types of laminates.

This makes the CO2 laser a very flexible machine. It can be used for everything from signs and nameplates to interior design details, packaging, prototypes, gift items and industrial markings.

However, CO2 lasers are generally not the best choice for metal. Fiber lasers are most often used in metal processing, as the fiber laser has a wavelength that is better suited for metallic materials.

What do you need to consider when choosing different materials?

Different materials react differently to laser processing, so it is important to adjust the settings according to the material's properties, thickness and desired result.

Wood

Wood is a common material for CO2 lasers and can be both engraved and cut. Since wood is a natural material, results can vary depending on the type of wood, density and surface treatment. Too high a power can result in burnt edges, while the right balance between speed and power can create a clear and controlled engraving.

Plastic and acrylic

Acrylic is a material that often works very well with CO2 lasers, especially when cutting where you can get clean and shiny edges. Plastics, on the other hand, require more caution as different types of plastic react differently. Some plastics are suitable, while others may give poor results or be unsuitable for safety reasons.

Therefore, it is important to know exactly which plastic material you are working with and to use the correct ventilation and filters.

Leather

Leather can be engraved and cut with a CO2 laser, but the material requires careful settings. Too high a power can cause severe burning or odor, while too low a power can cause poor contrast. The result is also affected by whether the leather is genuine, treated, or synthetic.

Plastic laminate

Plastic laminates are often used for signs and markings. Engraving in laminates often involves removing a thin surface layer to reveal the color underneath. This does not always require much power, as the top layer can be very thin.

Engraving too deep can create more dust, more odor, and more wear on filters and optics. At the same time, some people may want a deeper, more tactile engraving that is clearly felt with their finger. Therefore, the settings need to be adjusted to both the material and the visual or functional result you want to achieve.

Do you need help choosing the right CO2 laser machine?

A CO2 laser machine is a flexible and effective tool for engraving, marking and cutting in materials such as wood, acrylic, plastic, leather, textile, paper, glass and laminate. With the right settings, material selection and maintenance, the machine can create professional results with high precision and great creative freedom.

Do you need help finding the right CO2 laser machine for your business? Contact us We will help you choose a solution that suits your materials, needs and production goals.
