Laser cutter

Have you ever heard of laser cutters from Trotec? If not, let us tell you why Trotec machines can take your production and creativity to completely new levels. Trotec is a leading international laser manufacturer and is known for producing laser cutters that combine high precision, reliability and ease of use, making them the first choice for many companies around the world. Trotec lasers can cut wood, plastic, cardboard, leather, textiles, etc.Whether you work in manufacturing, crafts, design or education, a laser cutter from Trotec will help you deliver results with millimeter precision and speed.

Read more

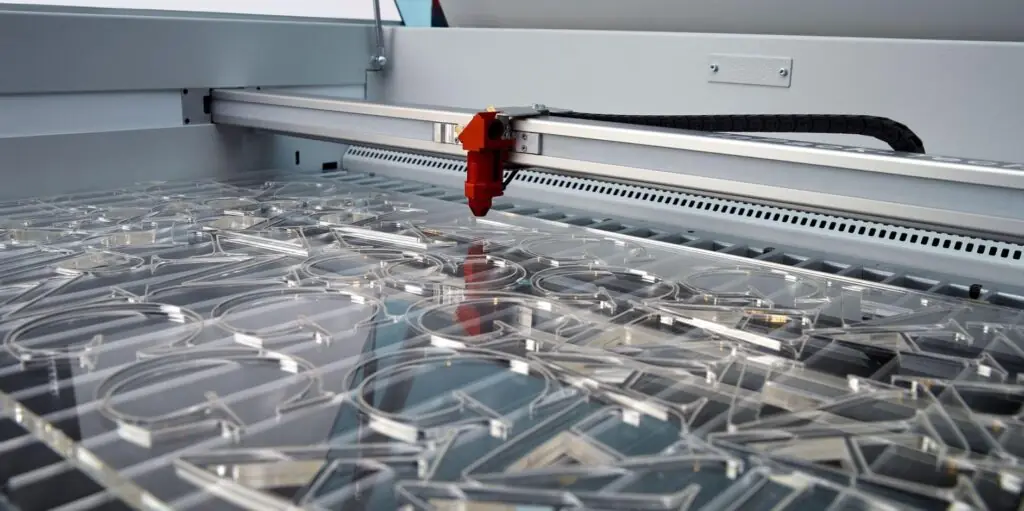

Trotec Laser Cutter - Cuts out acrylic

Laser cutter

Have you ever heard of laser cutters from Trotec? If not, let us tell you why Trotec machines can take your production and creativity to completely new levels. Trotec is a leading international laser manufacturer and is known for producing laser cutters that combine high precision, reliability and ease of use, making them the first choice for many companies around the world. Trotec lasers can cut wood, plastic, cardboard, leather, textiles, etc.Whether you work in manufacturing, crafts, design or education, a laser cutter from Trotec will help you deliver results with millimeter precision and speed.

Read more
Trotec Laser Cutter - Cuts out acrylic

Feature comparison

R400R500Q400Q500Speedy 50Speedy 100Speedy 300Speedy 360Speedy 400SP500SpeedMarker 700 CO2
Work surface (W x D)1030 x 630 mm1300 x 900 mm1030 x 630 mm1300 x 900 mm457 x 305 mm610 x 305 mm726 x 432 mm813 x 508 mm1016 x 610 mm1245 x 710 mm375 x 400 mm
Maximum material height200 mm45 mm200 mm45 mm141 mm170 mm200 mm210 mm305 mm112 mm363 mm
Input area (W x D)1130 x 690 mm1400 x 1150 mm1130 x 690 mm1400 x 1150 mm457 x 305 mm690 x 346 mm795 x 440 mm890 x 600 mm1096 x 698 mm1420 x 820 mm
Machine dimensions (W x D x H)1550 x 1080 x 1080 mm1870 x 1700 x 1110 mm1550 x 1080 x 1080 mm1870 x 1655 x 1110 mm726 x 425 x 685 mm1018 x 784 x 467 mm1130 x 943 x 1054 mm1221 x 830 x 1055 mm1428 x 952 x 1050 mm1428 x 952 x 1050 mm780 x 1388 x 1800 mm
Max. engraving speed1 m / s1 m / s2 m / s2 m / s1.5 m / s2.8 m / s3.55 m / s3.55 m / s4.32 m / s2.54 m / s13.4 m / s
Max. Acceleration10 m / s210 m / s215 m / s215 m / s240 m / s250 m / s250 m / s250 m / s219 m / s2
Laser power CO2100 W100 120-W60 100-W60 120-W30 W30, 50, 80W60 W60 120-W60 120-W60 200-W60, 120W
Laser effect flexx20 50-W20 -50W20 50-W
Laser class22222222222
Weight (Co2 or flexx)300 kg570 kg300 kg570 kg53 kg95 kg-150 kg150-215 kg250-285 kg310-350 kg520 kg330 kg

Questions & Answers (FAQ) about Laser Cutters

The following materials can be cut with a Trotec CO2 laser:

  • Acrylic
  • Plastic discs
  • Leather
  • Synthetic leather
  • Paper
  • Plastic material
  • Textiles
  • Wood
  • Velcro
  • Cork
  • Rubber
  • Food

Trotec laser cutters cannot cut any type of metal.

Please note that certain types of materials should not be engraved or cut with a laser due to their chemical composition. These materials contain hazardous substances that are released during processing in the form of gases and dust, which affect both the user and the operation of the machine. Some of these materials include:

  • Inferior Leather (chrome VI)
  • Carbon
  • Polyvinyl chlorides (PVC)
  • PVC based synthetic leather
  • Polyvinyl butyral (PVB)
  • Polytetrafluoroethylenes (PTFE/Teflon)
  • Beryllias
  • Materials containing halogens (e.g. fluorine, chlorine, bromine, iodine and astatine), epoxy or phenolic resins.

A laser cutter can cut a variety of materials. There are a few factors that determine the maximum cutting thickness – including the material, the laser power and the speed. The machines’ laser power ranges from 30-200 W.

Normally, you can count 10 w = 1 mm on plastic and acrylic.

No, Trotec machines are designed to be user-friendly. Their software, Ruby, is easy to use even for beginners. Very little training is required for the user and an integrated guide provides additional tips if needed. You can choose which material you are working with and which material effects you are looking for, e.g. deeper engraving, dark engraving or cutting out, and the cloud-based material database helps you streamline the process.

Ruby contributes to a simple and fast workflow from idea to final product!

We also offer training and support if you need help getting started.

 Thanks to the protected design and robust construction, Trotec laser cutters require minimal maintenance. However, regular maintenance such as cleaning lenses and mirrors is recommended to maintain high performance and extend the service life.

Trotec laser cutters are equipped with several safety features – protective covers, temperature sensors, safety switches such as a main switch, key switch and emergency stop button. These minimize risks for the operator.

Trotec machines have the CE marking, which meets EU requirements for safety, health and environmental protection. This gives you as the user a guarantee that the machine is safe to use and complies with applicable legislation.

It is not an easy question to answer. Each machine is configured based on the customer's wishes and therefore a fixed price cannot be set. Factors that affect pricing include, for example:

  • Laser source – What material should you laser process?
  • Laser power – How many units will you produce and what is the thickness of the material?
  • Workspace – How big are your workpieces?
  • Accessories and equipment – ​​Worktable, Exhaust system, rotary engraving accessories, lenses, etc.

But you can expect a Trotec CO2 laser to cost from around SEK 100.

All Trotec machines are developed and built in Austria and maintain a high quality.

Read more about Laser Cutters

Have you ever heard of laser cutters from Trotec? If not, let us tell you why Trotec machines can take your production and creativity to completely new levels. Trotec is a leading international laser manufacturer and is known for producing laser cutters that combine high precision, reliability and ease of use, making them the first choice for many companies around the world. Trotec lasers can cut wood, plastic, cardboard, leather, textiles, etc.Whether you work in manufacturing, crafts, design or education, a laser cutter from Trotec will help you deliver results with millimeter precision and speed.

How a laser cutter works

Trotec laser cutters use advanced laser technology to cut or engrave various types of materials such as wood, plastic, cardboard, leather, textiles, cork and rubber with high precision. This technology is based on directing a laser beam at the material, which either melts, burns or vaporizes it depending on the material type and cutting depth.

What is unique about Trotec laser cutters

Trotec has integrated several technologies to optimize performance:

  • Speedy series: This popular series from Trotec is known for its high engraving and cutting speeds and precision, and is perfect for everything from engravings to deep cutouts in multiple materials.
  • Flexx technology: The Speedy series from Trotec can be ordered with both CO2– and fiber laser, which allows you to switch between different materials without having to change machines. This is a unique advantage for companies that need maximum flexibility.
  • InPack technology: Trotec laser cutters have a closed design that protects sensitive components from dust and particles, reducing the need for maintenance and extending the life of the machine.

With Trotec, you get access to intuitive software, Ruby, which makes it easy to upload and edit design files, adjust settings and gain full control over the entire process – from design to finished product.

How to use Trotec laser cutters

Using a Trotec laser cutter is both easy and flexible. Here's a quick guide on how to proceed:

  1. Load the design: Start by creating or importing your design in Trotec's Ruby software, where you can easily adjust details, lines, sizes and other settings.
  2. Set materials and parameters: Trotec's software has preset parameters for a variety of materials, so you can quickly select the settings that suit your material for engraving and cutting. You can also create your own material settings as you get to know the laser.
  3. Start cutting: Once everything is set up, the laser cutter starts working. The laser follows the preset design exactly, and thanks to Trotec's high-speed motors, the engraving and cutting process is extremely fast.
  4. Check the result: When the cutting is complete, you can immediately see the clean, precise cutout or engraving. Trotec laser cutters provide minimal waste and post-processing, saving both time and material.

Common uses for laser cutters

Laser cutters are used in a variety of industries, thanks to their versatility and precision. Here are some examples:

  • Advertising and signs: Cut and engrave acrylic, wood or plastic with incredible accuracy for signs and display materials.
  • The manufacturing industry: Perfect for marking or cutting out acrylic parts for precision parts in machines or tools.
  • Architecture and model building: Build detailed models with precise cutting out of thin materials like cardboard, wood, and acrylic.
  • Furniture and interior design: Carve and engrave detailed patterns in wood, leather and textiles, perfect for custom furniture or interior design products.
  • Education and research: Many schools and universities use laser cutters to help students create prototypes and learn design and engineering processes.

Learn more about Laser cutting and engraving of wood.

Results and advantages of laser cutters from Trotec

With a Trotec laser cutter you can expect incredible results. Here are some of the main advantages:

  • High precision: Whether you are cutting or engraving, you achieve extreme accuracy, making even the most complex patterns perfect. The laser beam creates the smallest possible cutting marks and has a minimum radius of 1/10 mm.
  • Speed: Trotec laser cutters are known to be some of the fastest on the market, meaning you can produce more in less time.
  • Ruby software (link): Ruby is the ultimate design software that enables the daily work with the laser machine to flow smoothly. You can create graphics, photos and text elements and make fine adjustments directly in the program.
  • Features and options (link): Trotec offers a range of smart functions and options so that the machine can be adapted to your needs.
  • Versatility: With the ability to handle a wide range of materials, Trotec opens up unlimited design possibilities.
  • Minimal material waste: Laser cutting means less material waste compared to mechanical cutting methods, saving both material and money.
  • Low maintenance cost: Thanks to Trotec's InPack technology and robust design, minimal maintenance is required, reducing operating costs.

Why should you choose a laser cutter from Trotec?

When you invest in a Trotec laser cutter, you get a machine that is built to deliver the highest quality, regardless of industry or application. With their fast speeds, high precision and flexibility, you get a solution that improves your productivity and quality while reducing your production costs.

If you are looking for a laser cutter that is reliable, versatile and easy to use, then Trotec is the perfect choice for you!

We are responsible for Trotec Laser machines in Sweden, Finland, Denmark and Norway. With Logimark you always have direct contact with experts and technicians in Swedish and English who will help you with the support and service you need.



Get in touch with your questions and concerns and we will make sure to find the laser cutter that best suits your business!
